Friday, 28 November 2014

Dansgaard-Oescher cycles and the Thermohaline Circulation

Let's have a look at the last record again:


We see that all Dansgard-Oescher (D/O) cycles happen during the big glacial period. So one hypothesis that scientists came up with believes that the triggering of the cold drops could be due to ice bergs. The large amounts of ice rafted debris (IRD, see last posts info box) on the ocean sea floor suggest that big pieces of sea ice broke off the big Laurentide ice sheet sitting on top of North America and the big Scandinavian ice sheet located on top of Scandinavia and Northern Europe, and floated southwards on the Atlantic Ocean. Of course ice sheets are much colder than liquid water, so melting must have happened fast. Hence, large amounts of freshwater were released to the North Atlantic changing the salt content within the water.

From the last posts, we know this implies a reduction of North Atlantic deep water formation and hence a weakening of the whole Atlantic THC!

Models indeed show that input of freshwater to the North Atlantic leads to a weakening of the Atlantic circulation. However, many factors, such as amount, rate and location of freshwater input, seem to influence how drastic this weakening is (Ganopolski &, Rahmstorf, 2001; Clark et al., 2002; Hu et al., 2008). Also, many model runs suggested other earth compartments to play a role in the global distribution of cooling by changing wind, rain and evaporation patterns (Clark et al., 2001).

So, sadly the answer is not so simple. If models show something, does that mean it really happened?

Blunier et al. (1998) may have found the missing link when they were comparing ice core records in the Arctic with the Antarctic. They simply plotted both temperature curves on the same time scale (not as simple if you have to do it….) and saw that both records unexpectedly did not line up. When the arctic temperatures were cold, the Antarctic temperatures were warm and vice versa. This was not the case for all D/O cycles, but very distinct for few. How could that be possible?

During the same year, Stocker (1998) proposed the solution: the Atlantic circulation. We all profit from the heat the Gulf Stream constantly transports to the north. However, we tend to forget that the heat is actually stolen from the southern Hemisphere. If we compare heat transports in other oceans, heat north of the equator goes north, while heat south of the equator goes south. Contrary, in the Atlantic heat goes north no matter where it is located, due to the THC.

What Stocker is implying for the D/O events is that a cooling in the North Atlantic will lead to more ice bergs melting and more freshwater input. This will weaken the THC and slow down heat piracy from south to north. As a result, the southern hemisphere will end up with more heat, leading to a warming in the south, while there is a cooling in the north. This process of the thermal bipolar-see saw (or sea saw) can be found in actual climate models (i.e. Stenni et al., 2011) as well as in climate models (Seidov& Maslin, 2001).
As a summary we can conclude that obviously Atlantic THC played a major role in forming the D/O cycles.
However what actually induced climate to change is still discussed. Some say solar insolation gave the first initial forcing (i.e. Cruz et al., 2005), some say the changes in Atlantic circulation can explain the climate changes (Seidov& Maslin, 2001).
Still, then what changes the THC?
Ice volume… what changes ice volume? ..... You see the problem.

...

Thursday, 20 November 2014

When could the Thermohaline circulation have shut down during the last 100,000 years?


Last time we found a record showing temperature differences from today over the last 100 000 years. Now let’s see whether we can find possible THC-shutdown incidences…


On the first blink, the temperature record just looks like a sequence of undefinable scribbles. However, we have to bear in mind that those scribbles show temperature dropping and rising again within less than 100 years! From roughly 70 000 to 100 000 years ago, the scribbles are rather boring and show no significantly extreme changes. But the time from 10 000 to 60 000 years ago shows a row of very extreme changes over only short periods of time. These could possibly give us insights into ocean circulation changes.

The first question: do we see those extreme temperature changes also in the Atlantic Ocean?

Yes we do! Look at this record found by Grootes et al.(1993) in the GISP2 Greenland ice core (blue line) and another one found by Sachs & Lehman (1999) in a subtropical North Atlantic deep sea sediment core (green line) for the last 60 000/30 000 years:





Looking at all those rapid climate change events more closely, scientists have found out that there are two distinct happenings which keep showing up in the record. They named one set Dansgaard-Oescher cycles (event 1-20) and Heinrich events (event H1-H5).

Daansgard-Oescher cycles are characterized as being high frequency climate oscillations (Maslin et al., 2002). The short warm phases appear in the ice core records as 5-10 degree warming phases within only a few decades. At first, cooling is happening gradually, then abrupt over less than 30 years (Rahmstorf, 2002). Both records show the D/O cycles, meaning that the rapid warming/cooling was not confined to the North Atlantic, but happened across the whole ocean. However in sediment records the cold phases are recorded, since substantial layers of ice rafted debris (IRD, see INFO BOX) show up in the record (Maslin et al., 2002). A study done by Voelker et al.(2002) shows that evidence actually exists throughout the globe making this a significant global climate event.

Here we have our first candidate. Could it be possible that changes in Atlantic thermohaline circulation caused these abrupt climate events?
The next question is: how?


Could you imagine how the THC can collapse? Post your ideas :)




( Info Box links: Bond et al. 1992; Bond & Lotti 1995; Alley & Macayeal 1994)

Monday, 17 November 2014

SCIENCE FACT Where does all that knowledge for past climates come from? And what on Earth are isotopes??

Most of us know that the continuous measuring of climate variables (such as temperature, rainfall, ...) didn't start until roughly 150 years ago (see data sets on KNMI Climate Explorer). So then how are climate scientists able to know about climates in the past?... simply because the Earth has recored its climate history in various natural archives. Our job is it to look at these archives and understand the codes in which the different climate variables are encrypted... much like a detective.

The most common and famous natural archives are:

ice cores
sediment cores (either from the ocean or from lakes)
stalagtites + stalagmites
fossilized pollen
tree rings
corals

Why those?
All of the above named natural phenomena have one similarity: they all come with a record of time. Without a record of time, I will never be able to reconstruct the past. In all, time is represented as layers (except for pollen, which are normally found in a certain layer of a terrestrial core). If the layers are well kept, I simply have to go ahead and count backwards, thinking of each line as a year.
In the case of sediment cores, layers might not present an annual resolution meaning the lines here represent bigger time pieces. In that case I can use big global events that may be seen in the core and give those layers a date (i.e. Sarna-Wojcicki et al., 1985; Drexler et al, 1980; Machida, 1999). An example for such a big event is the explosion of the Yosemite Volcanoe. The event was so huge, that Yosemite ashes can be found in almost every record that goes this far back. In the more recent history, we can easily date the 1950s and 60s, due to the large amounts of atmic bombs that were tested. The material from those bombs is also visible in most modern archives (Picciotto & Wilgain, 1963; Eichler et al., 2000) .

Here are some examples of natural archives:

Ice core:


Coral core:


Ocean deep sea sediment core:


Cave Stalagmite:

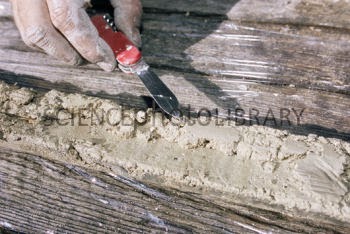

Soil core for Pollen:


Tree rings:

How can scientists extract data out of this? The isotope method:
The whole core is important for dating. The actual climate information however is extracted in the most genious and creative ways. The ones listed here are just a few ways of how one can do it.
One way is to look at the thickness of layers. Tree rings or ice cores for example (depending on where they are from) may differentiate between rain/snowyy vs dry years.
Another way is looking at isotopes. Whats that?
--> Every atom has electrons, protons and neutrons. The amount of electrons and protons (amount of electrons = amount of protons) defines what it is (either oxygen, or carbon, or iron...). The neutrons are defining how heavy it is. More neutrons = heavier. Less neutrons = less heavy.
So an oxygen atom with 16 neutrons is lighter than an oxygen atom with 18 neutrons.
Exactly this is what the scientists use.
Let me use the deep sea sediment core to show you how (bare in mind that this is just a simple way of explaining... incase you are a climate scientist):
Step 1: drill the deep sea sediment core
Step 2: count the layers and have an idea how old each layer is
Step 3: go to the layer you're interested in and look for little animals that lived in this time, then died, sank to the ocean floor and now are located in your core. Most scientists use little living beings called foraminifera. They build a calcium (chemically: CaCO3) shell and thus can provide you with carbon and oxygen atoms.
Step 4: get the atoms out of the little foraminifera
Step 5: count how many heavy oxygens and how many light oxygens you can find and calculate a ratio: all oxygens with 16 (16O)/ all oxygens with 18 (18O).
You are done! wow. what does that tell you about the climate?? a lot! Let me give you a little background information:
We know that 16O is lighter than 18O. So imagine you are at the equator. It is nice and warm and a lot of water from the ocean evaporates into the air.
What happenes: of course the lighter particles evaporate first meaning lots of 16O leaves the ocean and circles in the atmosphere.
Now imagine we travel to the poles. It is very cold and lots of moisture is in the air. It snows. All the 16O that we just collected from the oceans falls down as snow and gets stored on the big ice sheets. Do you see: the Atmosphere is a SORTING MACHINE for oxygen isotopes!!!!
Now if you search the isotopes in your sediment core: you see that there is layers with lots of 18O and layers where 18O = amount of 16O. From what we learned above: the layers with lots of 18O show ice ages (lots of snow keeps lots of 16O out of the ocean), while the layers where 16O and 18O are almost the same show warm periods (most 16O rains back into the ocean and only very little is turned into snow and stays on the poles).
That is quite amazing! Now you know why scientists love isotopes! :D
If you want to read it from the "discoverer of isotopes" himself: Shackelton (1987); Chappel & Shackelton (1987); Gat et al. (1981)
Good informatin about ice core sampling can be found here: Alley (2000)


Sunday, 16 November 2014

The 1 million "currency" question:


The one question everyone is currently worrying about in terms of global warming:

Could our release of greenhouse gases and the current increase in global mean temperatures lead to a shutdown of the THC and would this send the whole of Europe and North America into ice age like conditions?




(btw if you think this "freeze" is completely overexaturated.... check out the FUN FACT about Brinacles! ;) )


To investigate this question, we will take a paleoclimatic approach and look back in time to see whether the THC has shut down before, under which circumstances it does this, and what the consequences were for the North Atlantic region.

But then, where do we search? 1000 years ago? 100 000 years ago? 1 million? When the Earth was created??....

Let’s review what we know about the THC (see other posts):

-          It is sensitive to temperature and salt content (deep water production)

-          Heat is transported from south to north via currents

-          Currents may flow very fast

-          The mixing time for the whole world ocean is roughly 1000 years

-          We believe that changes called rapid climate changes are connected to ocean circulation

This gives us the hint that turning off the THC probably will happen on a rather short geological time scale. So luckily, we do not have to travel back to the Earth’s first birthday. However, 1000 years might be too short aswell, since one water drop needs this long to have gone through the whole conveyor belt system. So we expect to find something in the 100 000 year range!

Now we just need data! And if we look around the world, there are an uncountable number of archives that have recorded the last 100 000 years of climate! Especially important are ice cores! (for more information see SCIENCE FACT). Ice cores on Antarctica go back 800 000 years (Luthi et al.,2008)! Greenland ice does not reach back that far, but still enough to cover our period of interest (Svensson et al., 2008). The great thing about ice cores is that little bubbles of air have been trapped in the ice (Alley, 2000). With careful extraction, you can get an air sample from the 400 000 year old atmosphere! You gotta admit... that's pretty cool!

And this is what we are going to look at. Here you see "real" temperature values for the last 100 000 years:



Let me know what you see/feel/think/notice!

Wednesday, 12 November 2014

Lets get to the good part!...

If you kept up reading this blog, you should have now collected enough information to take part in a broader discussion. To actually evaluate the problem of the ocean circulation and its stability in terms of climate change I will try to give you a small insight into the actual scientific discussions that are currently going on.

We will be looking at the following issues:
- how can the THC be shut down? What are the natural drivers? What is the paleoclimatic evidence?

- What are some aspects of the THC that influence climate on earth (i.e. the thermal bipolar seesaw) ?

- How do we understand other parameter influences on the THC (i.e. CO2, temperature, ). Of course this is keeping in mind our current climate change/global warming.

- What are the future projections? Could the THC shut down again and we do end up in a doom scenario so wonderfully protrayed by the day after tomorrow (see post 2).

- Lets look at possible criticism and contrary ideas. What research questions are still open? What needs to be found out?


I hope you're looking forward to this collection of subjects. If you have a specific question that is not listed above, please feel free to leave a post and I will see what I can find!

LETS GO!

http://www.zastavki.com/pictures/640x480/2012/Animals_Under_water_Penguins_jump_in_water_036079_.jpg

Monday, 10 November 2014

FUN FACTS: Red Tides

Ever seen the ocean turn red? If you are coming from Mexico or Florida, you should be familiar with this.


http://www.whoi.edu/redtide/


Due to high amounts of nutrients in estuarine waters, little phytoplankton single-cell organisms known as dinoflagellates explode in numbers, causing extensive algal blooms. Depending on their photosynthetic pigments, they may color the ocean from green, brown to bright red.

Some blooms ( “harmful red tides”) may be dangerous to humans, mammals and fish, due to neurotoxins developed and released by the phytoplankton. Fish and mammals may die, while humans are harmed via eating affected shellfish species (Kirkpatrick et al., 2004).

On the one hand, there is a great need for prediction and management of red tide occurrences, due to health risks and potential economic crisis for fish markets (Kirkpatrick et al., 2004; Jin et al., 2008). On the other hand, scientific prediction of algal blooms is tough, while management techniques may influence ocean ecology. Nonetheless, the science is on it! (Anderson, 1997).



http://floridashapeoff.com/news/2008/talk-on-reducing-red-tide/

SCIENCE FACT: How to display upwelling. An example from the central Great Barrier Reef/ Australia

The following satellite image is an example of how to use blooms to visualize upwelling. The color index shows the amount of chlorophyll a measured on the surface water, with red being the highest.
Chlorophyll a is great for localizing algal blooms, since it is used by algae for photosynthesis.

In addition, the image shows little arrows indicating wind speed and direction. You can see that the highest chlorophyll amounts are found right on the coastline where the wind blows surface waters directly away from the coast, leaving space for upwelling bottom water.

Check out the scientific marine database: oceancurrent.imos.org.au to look at other relationships in the southern ocean.




http://oceancurrent.imos.org.au/CGBR_chl/latest.html

Upwelling: closing the conveyor belt cycle

As mentioned in earlier posts, upwelling describes the process of ocean deep water changing its density and rising to the top. Global upwelling is not only necessary to close the conveyor belt system, but also essential for most marine life on earth.

Major upwelling areas around the world
http://oceanservice.noaa.gov/education/kits/currents/media/supp_cur04a.html

Upwelling may occur either in the open ocean or on the coast. In both cases, upwelling is induced by wind stress on the upper ocean layer, referred to as Ekman transport [info box, Price et al., 1987].
Wind pushes away water which needs to be replaced immediately. During an upwelling event, the water replacing the blown away surface water is ocean deep water. So, cold bottom water is forced to the top of the ocean. Once in contact with the atmosphere and surrounding water masses, it will change its temperature/salinity/density characteristics and become part of the warmer surface currents.

The upwelling phenomenon may be especially strong on coast lines (Figueroa & Moffat, 2012), due to the coriolis force [see post on Deep Water Formation].
Depending on the direction of the wind and the earth “spinning away from the water” an especially large “hole” is left behind to be filled with cold bottom water. Hence, most large upwelling areas are close to the world’s coastlines.



Why is the process of upwelling so important for our marine life:

Cold ocean bottom water is known to be high in oxygen and nutrient content (see info box), while warm surface waters often lack this richness. Now imagine yourself on a hot summer day, when suddenly someone hands you a wonderful cold and fresh drink! That’s what it must be like as a marine living being in the (sub)tropics during an upwelling event. In other words, marine life explodes. The large excess in nutrients and oxygen lead to excessive algal blooms with in turn activate the whole food chain !

(Widman & Smith, 2003; Gruber et al., 2011; Chavez & Messie, 2009; broader information also available at: Edyvane, 1999; Cheung et al., 2009;


http://wordquests.info/cgi/ice2-for.cgi?file=/hsphere/local/home/scribejo/wordquests.info/htm/L-Gk-plankton-phyto-zooPt2.htm&HIGHLIGHT=japan





[All of the above named processes are well described in van Aken (2007) The OceanicThermohaline Circulation, An Introduction. Atmospheric and Oceanic SciencesLibrary, Vol. 39 or Talley et al. (2011) Descriptive Physical Oceanography: An Introduction, 6.Ed.]


Tuesday, 4 November 2014

FUN FACTS: Brinicles

Under certain circumstances, the process known as brine rejection [see post on Deep Water Formation] may lead to an ice phenomenon referred to as brinicles:

Watch for yourself!



Downwelling and deep water formation – what drives the THC

As we have seen in previous posts, ocean water reaches higher densities the colder and saltier it gets. Thus, to find significant areas of downwelling, we have to look for places on the globe, where ocean water is made particularly cold and salty. This leads us to the poles.

Both the Arctic and Antarctic have the potential to cool water to minimal temperatures. In the Antarctic, waters under ice sheets may lose so much heat, that the process is referred to as super-cooling. Through ocean gyres [info box], water is brought to the surface and cooled via convection by releasing heat to the atmosphere. Due to its lower temperature, the water mass will increase its density and sink to the bottom, where it is pushed away from the creation center by following water masses. The conveyor belt is moving.

Simply cooling water down will not lead to particularly dense waters. Parallel to the temperature loss, salinity needs to be increased. This is mainly possible by taking away water, but leaving the salts behind. Hence, the left behind water mass will become more saline.

There are two main processes that will accomplish the above: evaporation and ice formation.
Through evaporation, water will be removed from the oceans and enters the atmosphere as vapor. Since most salt particles are too heavy, they will be left behind. Ice formation leads to a similar process. By freezing ocean water, fresh water is taken out of the water mass, while the salts stay behind. This process is referred to as brine rejection.

Deep water formation in the Antarctic: Antarctic Bottom Water (AABW)

There are several places around the Antarctic continent where deep water formation takes place. The most famous one is the Weddell Sea, where the Atlantic Ocean hits Antarctica. Deep water formation in Antarctica is mainly connected with heat loss and brine rejection. Large year round ice sheets cool the surrounding ocean water to up to minimum temperatures of -2.2°C and increase their salinity by constantly freezing more water. This leads to the AABW being the coldest and densest water mass on earth.

Deep water formation in the Arctic: North Atlantic Deep Water (NADW)

In the Arctic, most downwelling is happening in the Barents Sea, Greenland Sea and Labrador Sea. Here, convection and mixing are the two most important processes. As explained above, gyres transport water to the surface and cool it there. In difference to the Antarctic, the Arctic ice is purely sea ice with no underlying continental mass. Thus, many areas experience a great fluctuation in ice amount with no ice during summer and little during winter. The cold open oceans lead to extreme heat loss (no sea ice that protects the upper water layer) that rapidly cools down water masses. In a complicated mixing process, many different water masses with different densities form the NADW which leaves the Arctic to flow southwards as the Atlantics deep water flow. When it reaches Antarctica, it mixes with the Antarctic Circumpolar Current, which flows all around the South Pole and the Antarctic’s AABW. From there, the new water mass intrudes other ocean basins and connects the Atlantic with other world’s oceans.

You might have noticed that there is no particular process to enhance salinity in the Arctic. Under certain circumstances the mixing of all those different water masses may lead to higher salinity, but the most important process is actually happening long before the water reaches the Arctic: Evaporation of large amounts of water at the equator and the subtropics.

Due to the Hadley Cell and the Coriolis force [info box], these large amounts of water vapor are transported east across the Atlantic and across Middle America. The flat topography of Middle America allows the water masses to be exported straight into the Pacific, which means that the Atlantic loses large amounts of water which are not coming back (Richter & Xie, 2010). The only way to counterattack this water export is by importing fresh water through river outflows. However, looking at the Atlantic, only few large rivers (e.g. the Amazon) enter the Atlantic with significant freshwater inputs. When calculating the difference of input and output, we see that the Atlantic is losing more than it gains. Thus, the water masses flowing northwards become saltier.
By the time they reach the Arctic deep water formation places, the salt content is high enough to form deep water merely by lowering temperature.








Saturday, 1 November 2014

What drives Ocean Circulation: The Thermohaline Circulation

We were interested in the factors that drive and control Broecker's ocean conveyor belt. The most influencial process is called...

The Thermohaline Circulation (THC):

What is that? If you've come across some latin terms you might have figured out that thermo obviously refers to temperature, while haline refers to salinity. Thus, you have just named the two most important factors that drive the ocean conveyor belt.

Here is how it works:

Density of salty water happens to be positively correlated with salt content and negatively correlated with temperature. This means that the density of cold and salty water is higher than that of warm and fresh water and the less dense water will swim ontop of the denser water.
In the oceans, this phenomenon leads to large water masses being "sorted" by their density, with coldest and saltiest waters on the bottom of the ocean and warmest, freshest waters at the surface (Broecker, 1997).


http://omp.gso.uri.edu/ompweb/doee/science/physical/cipatt1.htm

Are you the kind who doesn't like jumping into the salty ocean during your beach holidays??... well be happy you're not a diver ;)



The upper figure shows that under normal circumstances there is no mixing between the layers. However, imagine you change the density of one water parcel in the corner of the figure by making it colder, then the parcel would sink and push away the last water parcel in the bottom layer which is forced to rise. Due to the rise it heats up slightly and becomes less dense, rising even better. And just like that you end up with a cycle that gets your water layers to rotate. In principle, the ocean conveyor works just like that. At upwelling areas bottom deep water comes to the surface, while downwelling areas surface waters sink to the bottom (Broecker, 1997).


graph produced by the author


To fully understand the process, let's take a trip to the most presigious downwelling areas on Earth: ARCTICA and ANTARCTICA

wooooooo.... you'll need your mittens!

http://www.pinterest.com/tristess/aleut-inuit-pantheon-people-of-the-pacific-northwe/

FUN FACTS: Currents

Did you know that some currents on Earth can reach velocities up to 2 m/s (7.2 km/h) or beyond! That is enough to generate electricity on a commercial base, by planting large turbines on the ocean floor (for more information see oceanflowenergies)!!





Currents frequently reaching 2 m/s: Florida Current, Agulhas Current
Currents frequently reaching 1.5 m/s: East Australian Current (EAC), Leeuwin Current

--> more about turtles in currents see also BBC News Article on Tiny Turtles tracked on swimming frenzy
